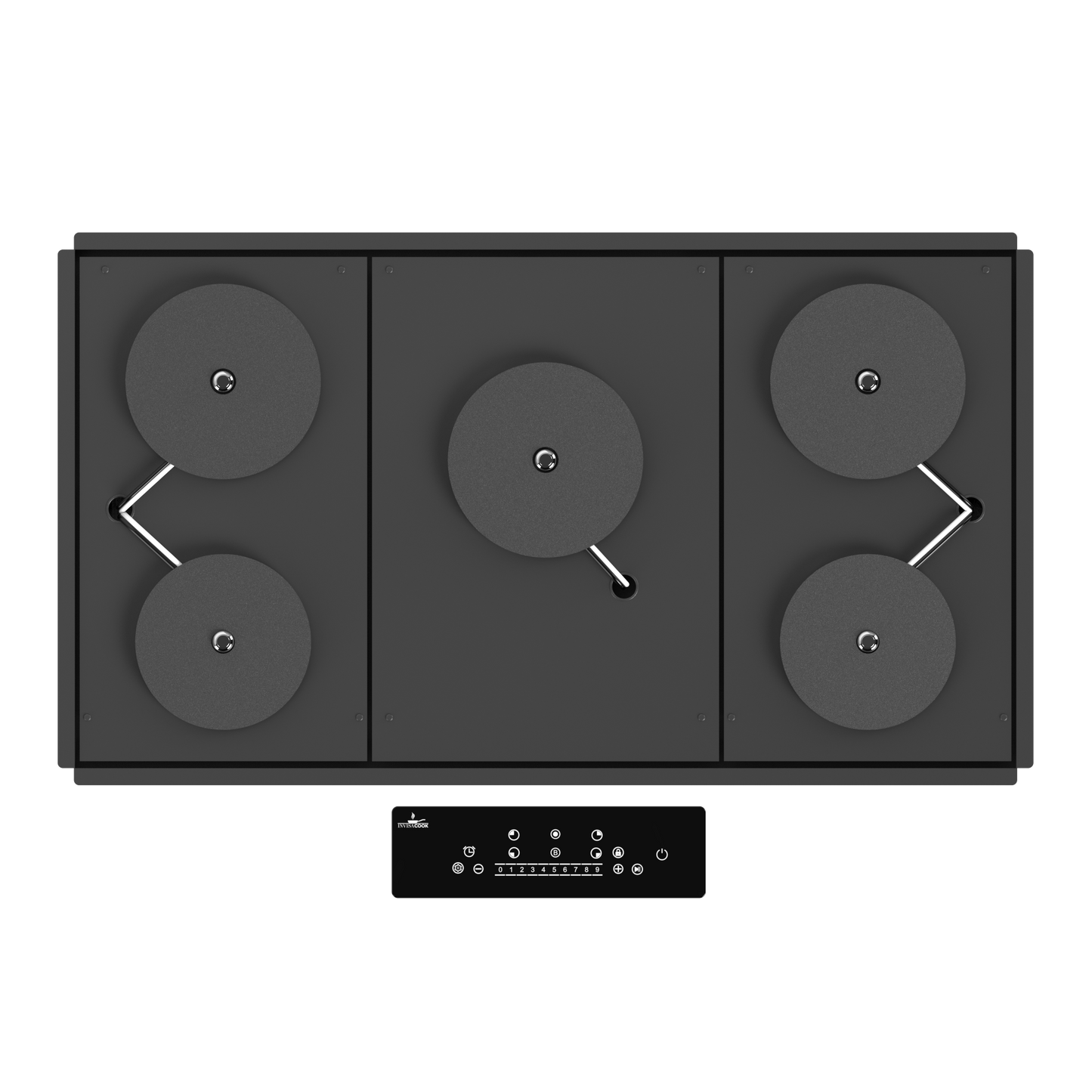

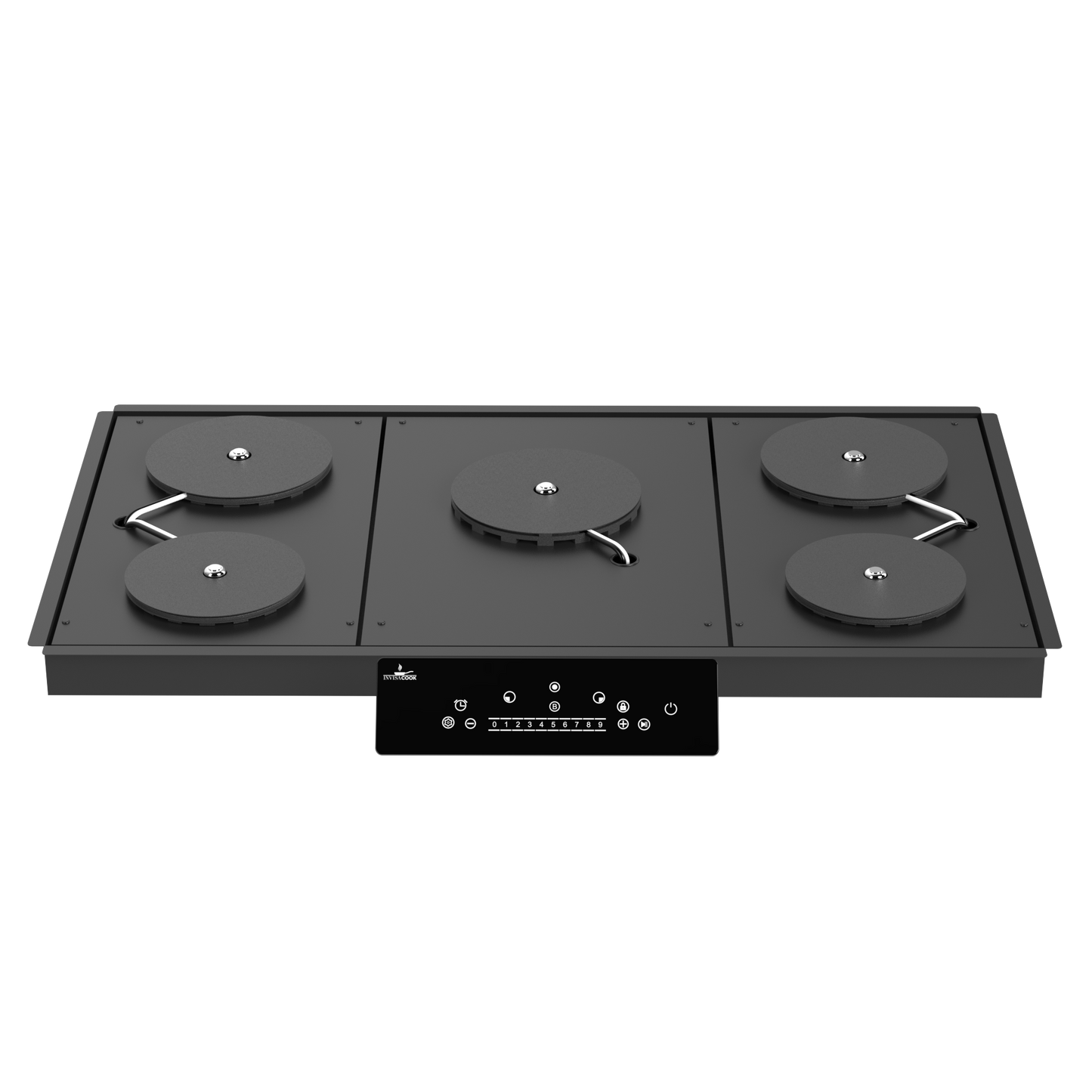

5 Burner Invisible Cooktop

DESCRIPTION

The Invisacook 5 Burner Unit uses state-of-the-art technology and an ultra-modern design to elevate your cooking experience.

Whether your meal is with family or friends, the self-contained system makes your cooking surface multipurpose.

With its minimalist, ultra-modern design, the 5 induction points enable easy and effortless mealtimes from preparation to service.

Using Wi-Fi and Invisacook App technology, relax in another room as your food cooks. Or you can control your meal manually from the countertop. Use the same space within seconds of heating your meal to finesse and serve.

Sizes Available

• 2 Burner 110V or 220V
• 3 Burner 220V
• 4 Burner 220V
• 5 Burner 220V

Invisacook Pans

Countertop material: Magnifica 12mm Porcelain.

Magnifica is a highly durable, nonporous porcelain that won’t absorb stains, is resistant to scratches and won’t harbor bacteria. Even hot pots and pans are no match for Magnifica.

As easy as it is to fall for Magnifica’s looks, caring for it is just as effortless. Soap and warm water make quick work of spills, marks and routine cleanings.

FEATURES

• 5 separate burning unit elements
• Power Boost option for faster speed.
• Wi-Fi capable with the Invisacook App so you can control your unit from anywhere.

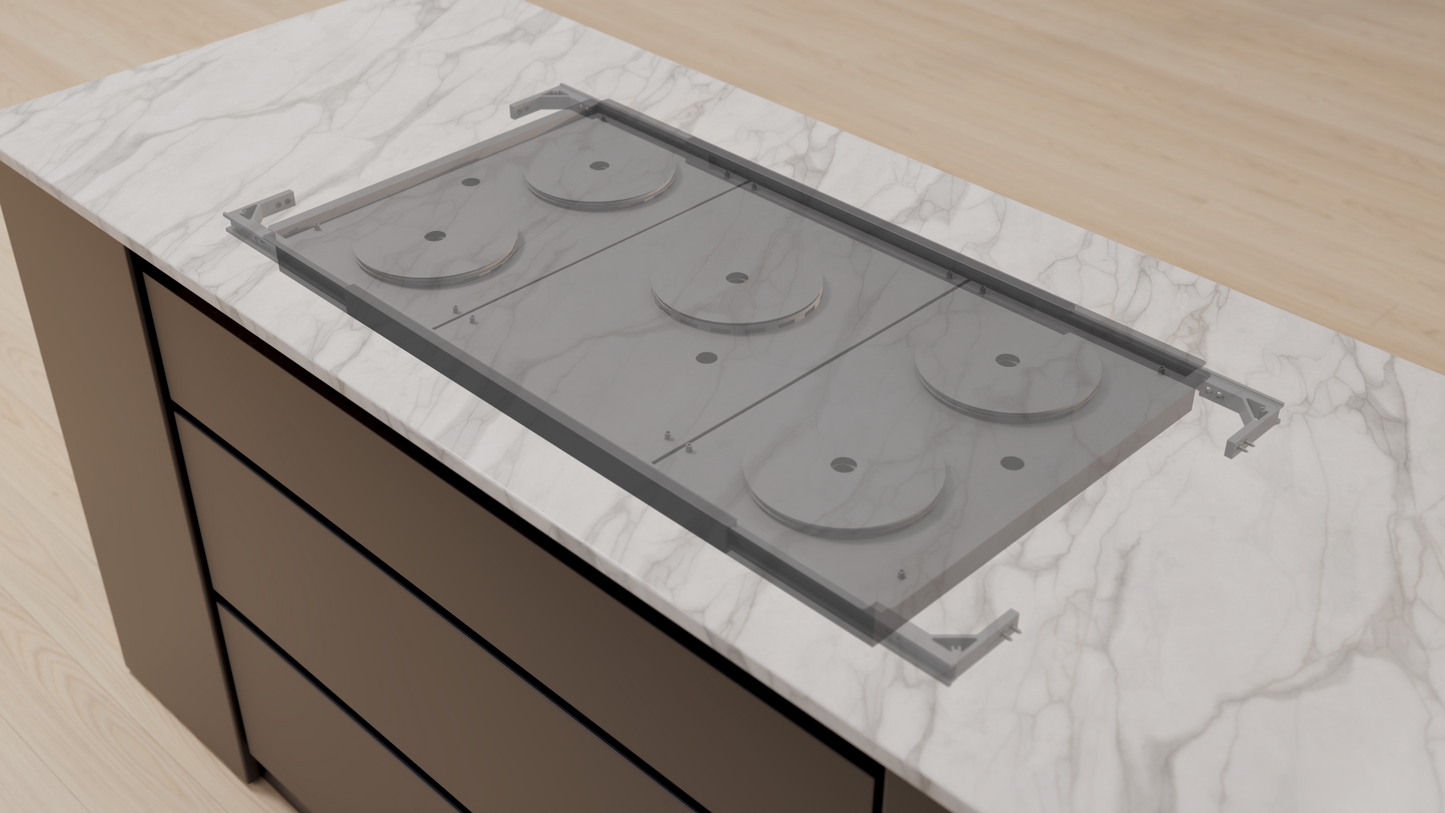

• Designed for Under-mount installation for any countertop surface in any way possible.
• 30 amp needed for 220v

Model Number # 8150-256-001

APPLICATIONS

5 Burner unit can be used in these options and materials:

• Typical House Kitchen
• Multi-Family (Apartments)
• Boats / RVs / Airplanes
• Tiny Houses
• Outdoor Kitchens
• Entertaining Islands or Tables
• Cooking Carts
• Materials suggested – Porcelain

WARRANTY

INVISACOOK – 5 Burner Unit – Individual is covered by a two-year consumer warranty that provides product replacement only and a three-year extended warranty to be purchased. Please visit Invisacook.com/warranty for more information.

PRODUCT REGULATORY REQUIREMENTS

Intended Application – This product is intended for indoor or outdoor covered use, not for use in inclement weather.

PRODUCT SAFETY

IEC60950-1 (International)

ELECTRICAL AND MECHANICAL SPECIFICATIONS

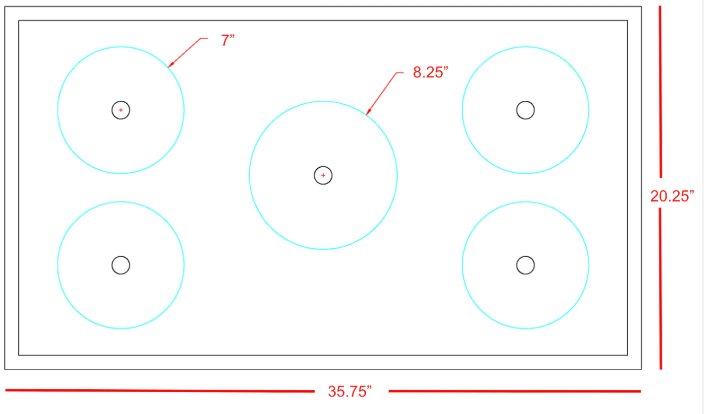

Dimension

(Approx. 35 5/8 x 20 9/32 x 2 3/16)

Bottom Size

(Approx.34 1/4 x 18 7/8 x 2)

Recommended material

Max thickness is 12mm Magnifica Porcelain

Controller top dimensions:

(Approx: 11 3/8 x 3 5/16)

Controller bottom dimensions:

(Approx: 10 1/4 x 2 3/8)

Connection

AC Input

220-240Vac 50/60HZ

Wattage

5,600 W ( Total Power Shared )

Max Power Per Burner

1200w + 1200w + 1500w + 1200w + 1200w

Platen Burner Size

180mm – 180mm – 230mm – 180mm – 180mm

Connector plug: Nema 15-30

TEMPERATURE

Operating Cooking Temps

97°F min /400 °F max. (36°C min / 205°C max.)

Product Downloads:

5 burner spec sheet

Installation and instruction manual

Invisamat brochure

*Popular man made quartz countertops or natural marble countertops are not supported. Dekton does not warranty Invisacook.
