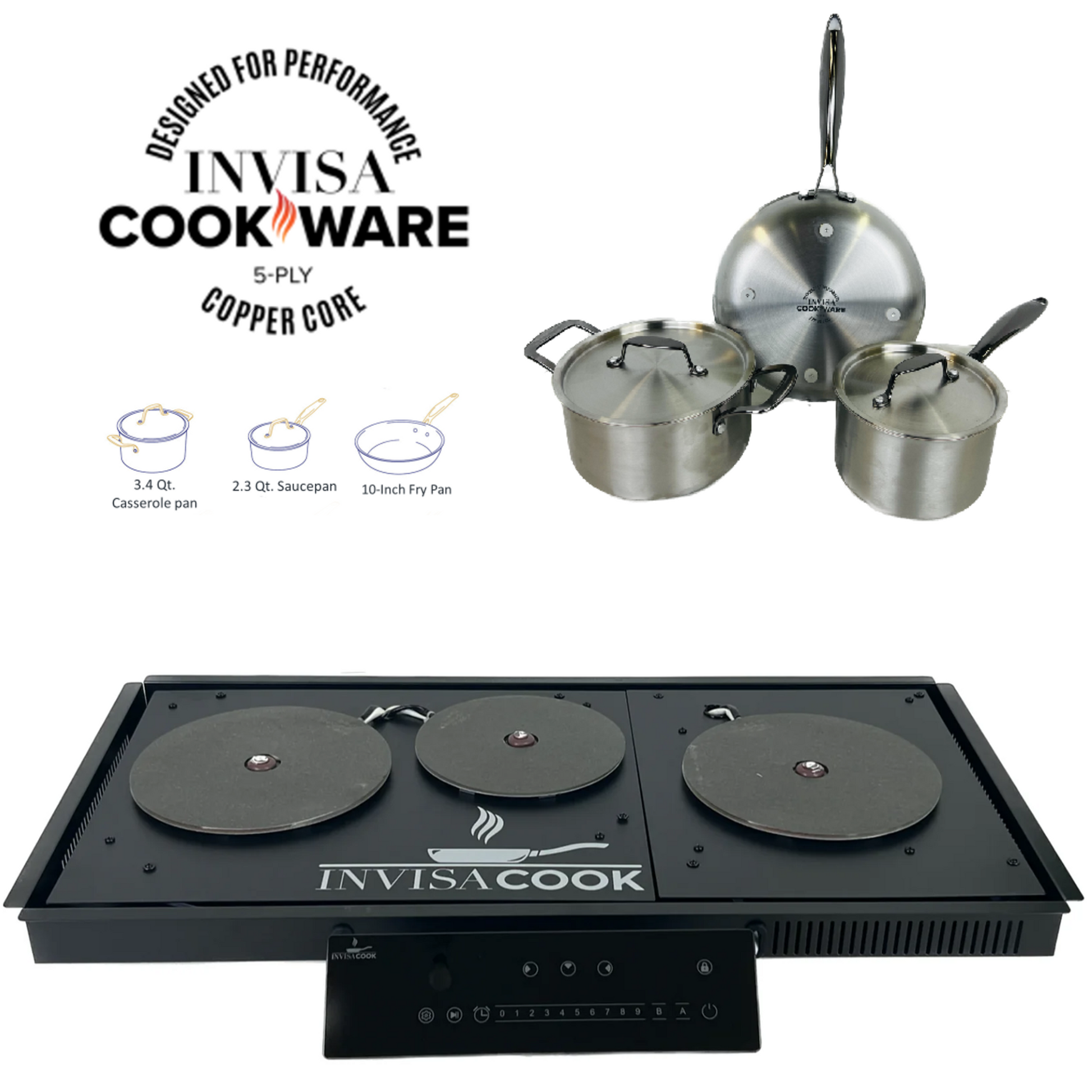

3 Burner Invisible Cooktop + 5 Piece Pan Set
3 Burner Invisible Cooktop + 5 Piece Pan Set
Couldn't load pickup availability
DESCRIPTION
Invisacook 3 Burner Units are safe, stylish, and hygienic. You can easily move from preparation to cooking thanks to its under-counter storage.
The Invisacook 3 Burner can be controlled remotely using your Invisacook App or via a controller.
Using the 3 induction points through your porcelain countertop, you can create complex meals quickly and easily. And the Invisacook self-contained system makes cleaning a piece of cake!
Sizes Available
Countertop material: Magnifica 12mm Porcelain.
Magnifica is a highly durable, nonporous porcelain that won’t absorb stains, is resistant to scratches and won’t harbor bacteria. Even hot pots and pans are no match for Magnifica.
As easy as it is to fall for Magnifica’s looks, caring for it is just as effortless. Soap and warm water make quick work of spills, marks and routine cleanings.
FEATURES
- 3 separate burning unit elements
- Power Boost option for faster speed.
- Wi-Fi capable with the Invisacook App so you can control your unit from anywhere.
- Designed for Under-mount installation for any countertop surface in any way possible.
- 30 amp needed for 220v
Model Number: 8134-256-001
APPLICATIONS
3 Burner unit can be used in these options and materials:
- Typical House Kitchen
- Multi-Family (Apartments)
- Boats / RVs / Airplanes
- Tiny Houses
- Outdoor Kitchens
- Entertaining Islands or Tables
- Cooking Carts
- Materials suggested – Porcelain
ELECTRICAL ANDMECHANICALSPECIFICATIONS
|
Dimension |
Description |
|
Dimension |
760 x 390 x 55mm (Approx. 30 x 15 3/8 x 2 3/16) |
|
Bottom Size |
740 x 370 x 49.5mm (Approx. 29 1/8 x 14 5/8 x 2) |
|
Recommended material |
Max thickness is 1.5cm porcelain |
|
Controller top dimensions: |
289 x 84 x 23 mm (Approx: 11 3/8 x 3 5/16) |
|
Controller bottom dimensions: |
258x60mm (Approx: 10 1/4 x 2 3/8) |
|
Connection |
Description |
|
AC Input |
220-240Vac 50/60HZ |
|
Wattage |
3,600 W ( Total Shared ) |
|
Power |
1200w + 1200w + 1500w |
| Platen Burner Size | 180mm – 180mm – 230mm |
| Connector plug | Nema 15-30 |
WARRANTY
INVISACOOK – 3 Burner Unit – Individual is covered by a two-year consumer warranty that provides product replacement only and a three-year extended warranty to be purchased. Please visit Invisacook.com/warranty for more information.
PRODUCT REGULATORY REQUIREMENTS
Intended Application – This product is intended for indoor or outdoor covered use, not for use in inclement weather.
PRODUCT SAFETY
IEC60950-1 (International)
Product Downloads:
Installation and instruction manual
*Popular man made quartz countertops or natural marble countertops are not supported. Dekton does not warranty Invisacook.
